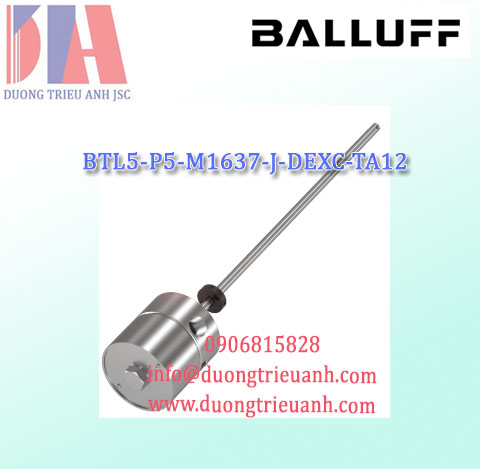

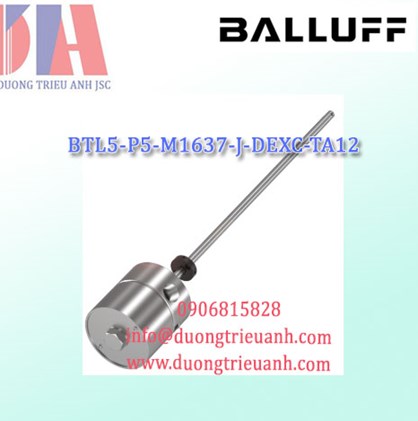

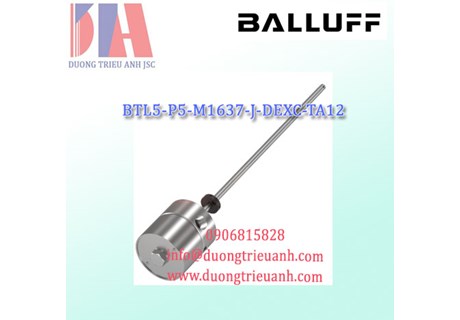

Cảm biến Balluff BTL1ZA8 BTL5-P5-M1637-J-DEXC-TA12
Cảm biến Balluff BTL1ZA8 BTL5-P5-M1637-J-DEXC-TA12
Style: Rod Series Ex
Mounting part: Flange Ø18h6 plus holes
Housing material: 1.4404 stainless steel
Connection: Clamping terminal, 7-pin
Interface: Start/Stop
Measuring range: 1637mm
Non-linearity max.: ±0.02 % FS
Repeat accuracy: ± 5 µm
Operating voltage Ub: 10...30 VDC
Ambient temperature: -40...80 °C
IP rating: IP68
Electrical connection
Connection Clamping terminal, 7-pin
Connection version radial
Polarity reversal protected Ub up to 28V
Electrical data
Current consumption max. at 24 VDC 100mA
Galvanic isolation no
Inrush current ≤ 3 A/0.5ms
Operating voltage Ub 10...30VDC
Overvoltage protection Ub up to 28V
Voltage-proof up to (GND to housing) 500 VDC
Interface
Interface Start/Stop
Material
Housing material 1.4404 stainless steel
Material flange 1.4404 stainless steel
O-ring material FKM
Protection tube material 1.4571 stainless steel
Mechanical data
Housing diameter 88 mm
Installation length from contact
surface
1765 mm
Mounting part Flange Ø18h6 plus holes
Null point 50.8 mm
Pressure rating max. 600 bar
Protection tube diameter 10.2 mm
Tightening torque 3.5 Nm
Range/Distance
Non-linearity max. ±0.02 % FS
Repeat accuracy ± 5 µm
Reproducibility ≤5 µm
Sampling rate, length-dependent 1 kHz, standard
Environmental conditions
Ambient temperature -40...80 °C
EN 55016-2-3, Radiation For industrial and residential use
EN 60068-2-27, Continuous shock 100 g, 2 ms
EN 60068-2-27, Shock 100 g, 6 ms
EN 60068-2-6, Vibration 12 g, 10…2000 Hz
EN 61000-4-2, ESD Severity Level 3
EN 61000-4-3, RFI Severity Level 3
EN 61000-4-4, Burst Severity Level 3
EN 61000-4-5, Surge Severity Level 2
EN 61000-4-6, High-frequency fields Severity Level 3
EN 61000-4-8 Magnetic fields Severity Level 4
