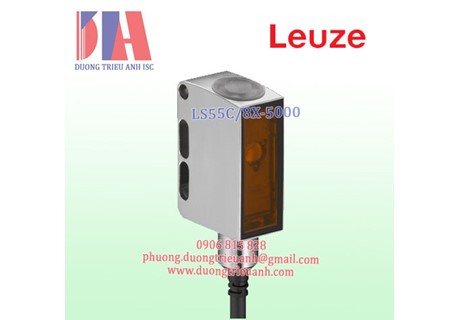

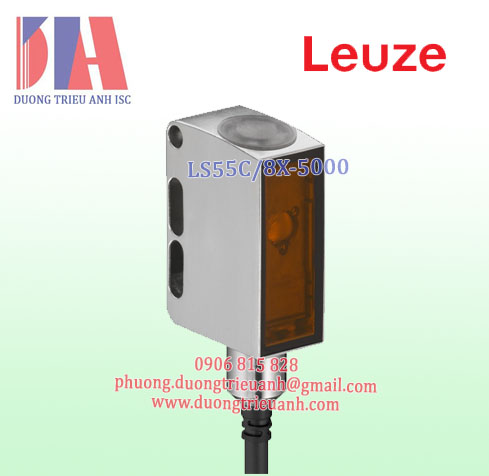

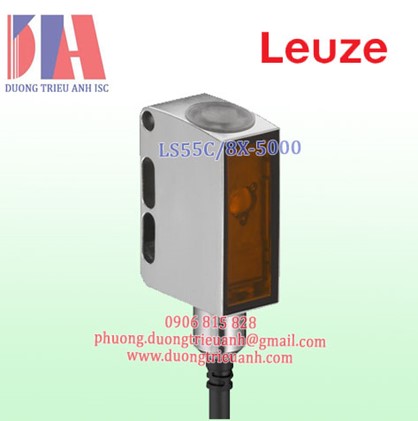

Cảm biến Leuze LS55C/8X-5000 (50148179)

Cảm biến Leuze LS55C/8X-5000 (50148179)

Series                                   55C

Operating principle             Throughbeam principle

Device type                         Transmitter

Special version                    Activation input

Wash-Down design

Operating range                  0.05 ... 8.5 m

Operating range                  Guaranteed operating range

Operating range limit          Typical operating range

Operating range limit          0.05 ... 10 m

Beam path                           Divergent

Light source                        LED, Red

Wavelength                         645 nm

LED group                          Exempt group (in acc. with EN 62471)

Light spot size [at sensor distance]     4 mm [100 mm]

Type of light spot geometry    Round

Supply voltage UB             10 ... 30 V, DC, Incl. residual ripple

Residual ripple                    0 ... 15 %, From UB

Open-circuit current            0 ... 15 mA

Number of activation inputs   1 Piece(s)

Readiness delay                  300 ms

Function                              Signal IN

Voltage supply

Type of connection             Cable

Cable length                        5,000 mm

Sheathing material              PVC

Cable color                          Black

Number of conductors        4 -wire

Wire cross section               0.2 mm²

Dimension (W x H x L)      14 mm x 35.4 mm x 25 mm

Housing material                 Stainless steel

Material of operational control           Plastic (POM Hostaform C9021, copolyester Tritan TX1001), non-diffusive

Housing roughness              Ra ≤ 0,8, Typical value for the stainless steel housing

Stainless steel housing        AISI 316L, DIN X2CrNiMo17132, W.No1.4404

Lens cover material             Plastic (PMMA+) with scratch-resistant Indium protective coating

Net weight                          210 g

Housing color                      Silver

Type of display                   LED

Ambient temperature, operation         -40 ... 70 °C
