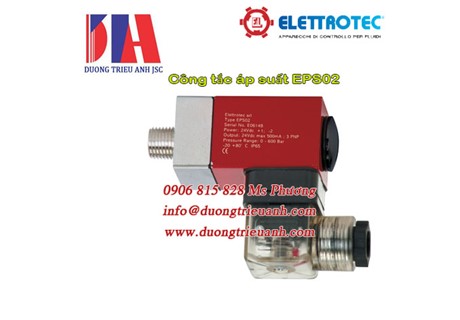

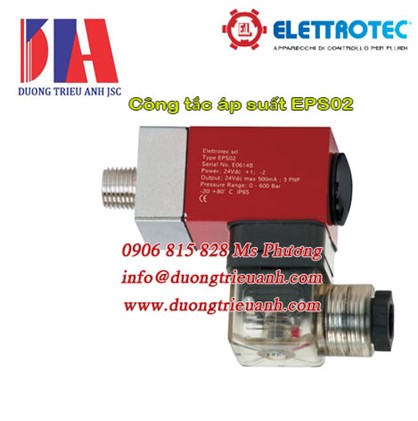

Công tắc áp suất Elettrotec EPS02 chính hãng

Thông số kỹ thuật của cảm biến:

Power supply    24Vcc ±15%
Current consumption    25mA
Pressure range    0…2bar; 0…5bar; 0…10bar; 0…20bar; 0…50bar; 0…100bar;0…200bar; 0…400bar
Pressure indication    Bar
Burst pressure    7 bar; 12 bar; 25 bar; 50 bar; 120 bar; 200 bar; 400 bar; 650 bar (according to the model required)
Accuracy    ±0,5% fs a 25°C
Materials of construction    Body: red anodized aluminium Flange: AVP nickel-plated steel Sensor: piezoresistive ceramic cell Al2O3 Seal gasket: NBR (standard)
Protection class    IP65
Electrical connection    DIN43650
Pressure port    G1/4 parallel (standard)
Output    1 NPN or PNP Transistor Output, max. 500mA; NO or NC contact
Temperature    -20°C…+80°C
Dimensions    66mm wide x 95mm high
Weight    200 grams
Certifications    CE
Harmonized standards    EN 61000-6-3; EN 55022+A1+A2; EN 61000-6-1, EN 61000-4-2+A1+A2; EN 61000-4-3; EN 61000-4-4+A1+A2; EN 61000-4-5+A1; EN 61000-4-6+A1

Ngoài ra còn có các model sau:
