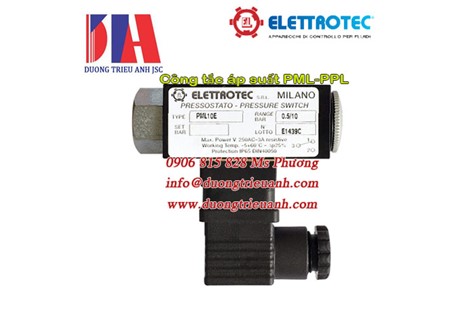

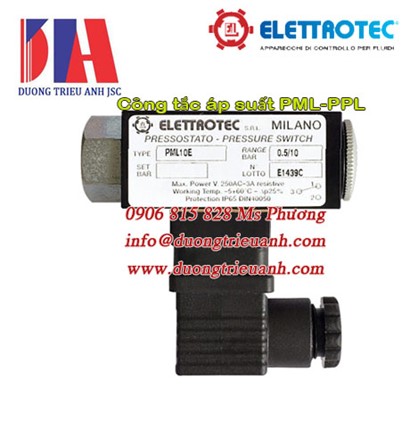

Công tắc áp suất Elettrotec PML100 | Elettrotec PPL350

Thông số kỹ thuật của công tắc Elettrotec seri PML:
Switch rating    3(2)A / 250Vac
Electrical connection    DIN 43650 PG09
Adjusting range    0.5..10 bar, 10…100 bar; 30…150 bar; 150…350 bar
Max static pressure    300 bar or 600 bar (according to the possible pressure range)
Hysteresis    30% set-point adjustment
Operating temperature    -5C… +60C
Contact (without pressure)    SPDT
Body material    Anodized aluminium Connection: steel
Diaphragm/Piston seal    NBR(standard)- FKM – Silicone
Threads    G1/4 female
Protection    IP65
Mechanical life    106 operations
Size    Body 30×30 + connector 48×30 Max height 70mm
Certifications and Approvals    CE, RINA , Lloyds Register, ATEX, UR
Options    Set-point adjustment rising Set-point adjustment falling Gold contacts.
