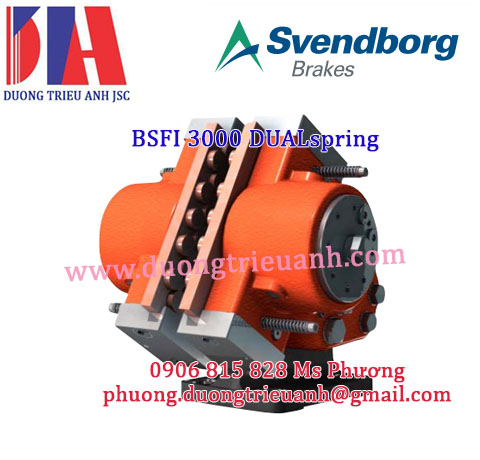

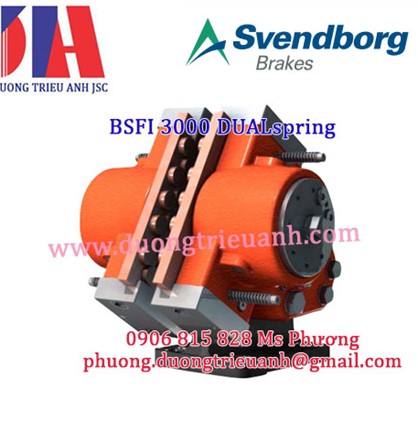

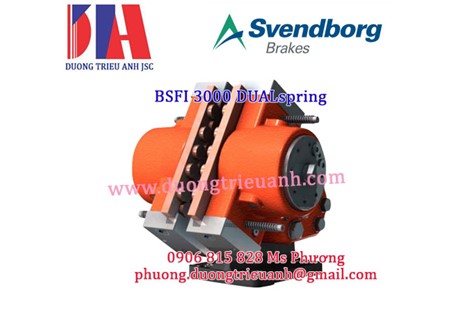

Phanh Svendborg BSFI 3000 DUALspring (lò xo kép)

Phanh BSFI 3000 DUALspring (lò xo kép):

Disc Brake: BSFI 3000 DUALspring

Name: DEB-3000-001-DS-MAR

TYPE: BSFI 3020

BSFI 3025

BSFI 3030

BSFI 3040

BSFI 3046

BSFI 3050

BSFI 3056

BSFI 3060

BSFI 3070

BSFI 3080

BSFI 3085

BSFI 3090

BSFI 3100

BSFI 3110

BSFI 3120

Thông số kỹ thuật Phanh BSFI 3000 DUALspring (lò xo kép):

Weight of caliper without bracket: Approx. 170 kg

Pad width: 200 mm

Pad area: (organic) 59,600 mm2 (*)

Max. wear of pad: (organic) 10 mm (*) ”(=22 mm thick)”

Pad area: (sintered) 36,000 mm2 (*)

Max. wear of pad: (sintered) 10 mm (*) ”(=22 mm thick)”

Nominal coefficient of friction: μ = 0.4

Total piston area - each caliper half: 88 cm2

Total piston area - each caliper: 176 cm2

Volume for each caliper at 1 mm stroke: 17.6 cm3

Volume for each caliper at 3 mm stroke: 52.8 cm3

Actuating time (guide value for calculation): 0.3 sec

Pressure connection/port: 1/4” BSP

Drain connection port: 1/8” BSP

Recommended pipe size: 10/8 mm

Maximum operating pressure 23.0 MPa

Operating temperature range - general from -20°C to +70°C
