TB Wood's L-Jaw couplings Model L07016MM | TB Wood L07014NK | Khớp nối L07058NK | TB Wood Coupling Viet Nam
TB Wood's L-Jaw couplings Model L07016MM | TB Wood L07014NK | Khớp nối L07058NK | TB Wood Coupling Viet Nam
Giá :
Liên hệ

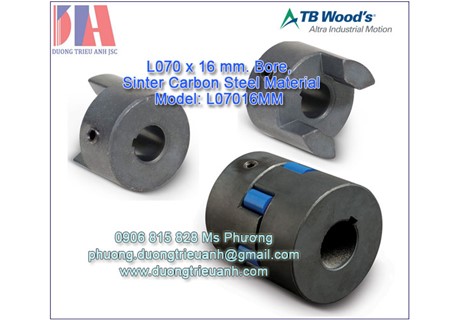

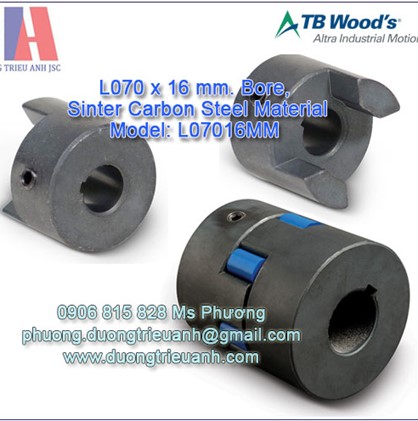

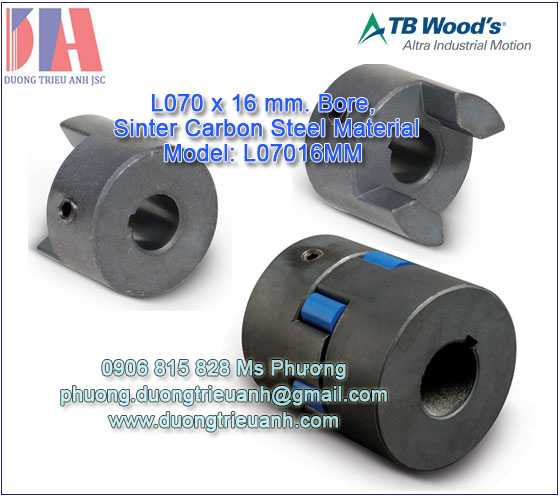

TB Wood's L-Jaw couplings L070 x 16 mm. Bore, Sinter Carbon Steel Material
Model: L07016MM
Product Family: L-Jaw Hub
Coupling Size: L070
Material Type: Sinter Carbon Steel
Bore Size: 16 (mm)
Max RPM: 14000
Keyway: 5 (mm) x 2.3 (mm)
Setscrew Length: 1/4 in
Outside Diameter (OD): 35 mm
Bore Tolerance: +.016/.034 mm
Parallel Misalignment [Max]: 0 mm
Bore Tolerance: +.016/.034 mm
Setscrew Size: 1/4-20 UNC - 2B
Center (C): 0.50 in
Overall Length (OAL): 51 mm
Length-Through-Bore (LTB): 19 mm
Hub Material: Sinter Carbon Steel
Bore Shape: Finish with Keyway
Jaw Type: Straight
Component Weight: 0 kg
