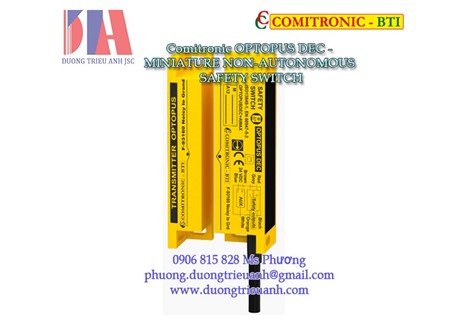

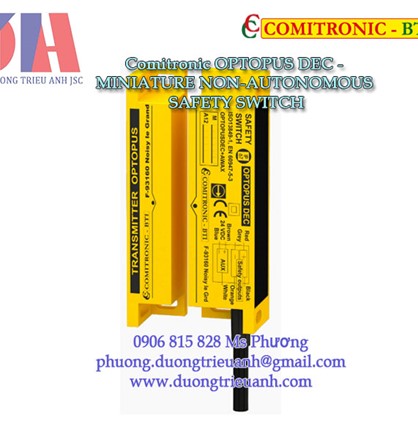

OPTOPUS DEC - MINIATURE NON-AUTONOMOUS SAFETY SWITCH

Position control for doors / casings on hazardous machinery



Contactless coded electronic sensor

Total safety management with an AWAX controller

Low cost solution for multi-access applications

Level of performance with AWAX controller: up to PL = e

Safety category: up to 4 with an AWAX controller

Time before dangerous failure: MTTFd = 420 years

Max. activation distance: 9 mm, 1 mm hysteresis

Safety contacts/diagnostics: 2 x NO 0.4A max / 24V redundant and

1 x 250mA PNP contact

Detection encoding: mono-code inviolable

Indicator: LED indicates code recognition

Reset: automatic

Attachment: 4 tamper-proof M3 screws (optional ref: BH3)

Mounting position: 2 (double wall brackets)

Material: PA6 or INOX 316L mirror polished (ref. + OX)

Electrical Connection: 3, 6, 12m cable (UL2464 PVC) or 50cm cord with M12 connector (UL20549 PUR) (ref. + MKT)

Water resistance: IP 67

Temperature: -20°C to +60°C

Marking: pad printing + serial no. for traceability.

Cảm biến Comitronic	OPTOPUS DEC/3M
Cam bien Comitronic	OPTOPUS DEC/6M
Comitronic Viet nam	OPTOPUS DEC/12M
Nha cung cap Comitronic chinh hang	OPTOPUS DEC/MKT
Comitronic chinh hang tai Viet Nam	OPTOPUS DEC OX/3M
Cảm biến Comitronic	OPTOPUS DEC OX/6M
Comitronic chinh hang tai Viet Nam	OPTOPUS DEC OX/12M
Cảm biến Comitronic	OPTOPUS DEC OX/MKT

Comitronic-TBI model AWAX 26XXL - Safety Relays - Self Check Box

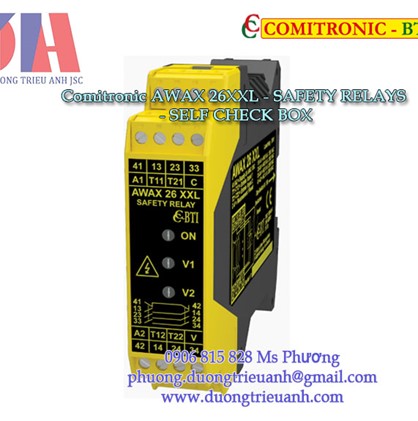

AWAX 26XXL - SAFETY RELAYS - SELF CHECK BOX

Sensor controller on Acotom process / mechanical switches / emergency stops

• AWAX26XXLT6 : Safety/diagnostic contacts: 3x NO 6A/250V redundant / 1x NC 6A/250V redundant serial (XXL version) or parallel (XXLP version).
• Time before dangerous failure: MTTFd = 415 years
• Cycle before dangerous failure: B10d=100,000 at 5A
• Risk duration: 20 ms max.
• Cable severing protection: yes (opening of safety lines)
• Short-circuit and overload protection: yes, using DLC (opening of safety lines and current limiting in contacts)
• Reaction 2 µs ultrafast
• Indicators: 3 LEDs for diagnostics
• Reset: configurable by dip-switch (SR=Automatic, N=manual)
• Mounting: symmetrical DIN 35mm rail on DIN 50022
• Mounting: IP 20 electrical box
• Electrical connection: Maximum 14 AWG (2.08 mm²) / 250V minimum
• Temperature: -20°C to +60°C
• Certification: TÜV Rheinland 01/205/5168/11
• UL 508 / C22.2 no.14 C-UL-US listed 34CB (file E214209)
