Giá : Liên hệ

Poppet design highly tolerant to dirty air
ANSI Size 1, 2.5, 4, 10, and 20
5/2 or 5/3 options
Sub-base and manifold base mounting

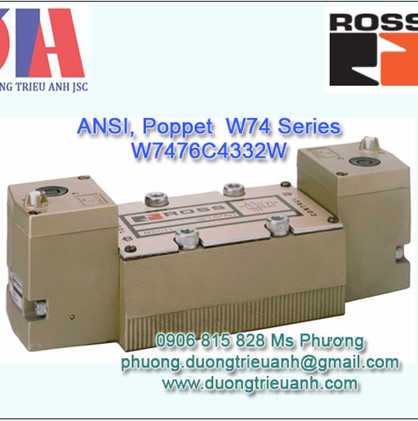

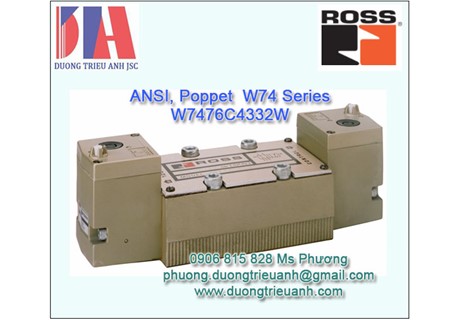

Miêu tả:    ANSI Size 4 W74 Series, 5/2 Double Solenoid Controlled, Standard Temp, Poppet, Non-Locking Manual Override, 24 VDC
Kích thước ANSI :    4
BASE PORT SIZE    1/2 - 3/4
FUNCTION    5/2 Double
VOLTAGE:    24 VDC
MANUAL OVERRIDE    Flush; Rubber, non-locking
CONSTRUCTION    Poppet
ACTUATION    Solenoid Controlled
AVG CV    4.2
CONNECTOR TYPE    Plug-in
MOUNTING    Base
APPLICATION    Standard Temperature
INLET PRESSURE RANGE    VACUUM to 150 PSIG (VACUUM to 10 BAR)
MEDIA TEMPERATURE RANGE    40 to 175 F (4 to 80 C)
AMBIENT TEMPERATURE RANGE    40 to 175 F (80 C)
WEIGHT:    5.0 lbs (2.27 kg)

Van Ross ANSI W7476C4332Z
Ross Viet nam W7456B2331
Nha cung cap Ross chinh hang W7476C4332W
Van Ross ANSI W7456C4331
Ross Viet nam W7456C4336
Nha cung cap Ross chinh hang W7476A8331W
Van Ross ANSI W7476C4336W
Ross Viet nam W7476B2331Z
Nha cung cap Ross chinh hang W7476A8332W
Van Ross ANSI W7476A3336Z
Ross Viet nam W7476A3331Z
Nha cung cap Ross chinh hang W7476A3337W
Van Ross ANSI W7456A3336
Ross Viet nam W7456A3331
Nha cung cap Ross chinh hang W7476A6331W
